Designed for ease and durability, the Leesa Foundation requires no tools for assembly. Simply watch the video and/or follow the steps below for a quick and hassle-free setup.
What’s in the box
- 2 Side Rails (Same for both sides)
- 2 End Rails (Same for both ends)
- 4 Fast Loc Pins (One for each corner)
- 2 Slat Packs (6 slats per pack)
- 1 Center Support Rail (2 for King/Cal King)
-
Leg Supports (Varies by size):
- Twin/TXL: 1
- Full/Queen: 2
- King/Cal King: 4
Just a heads-up! The slats pictured are a little different on the Low Profile Foundation, which are uncovered.
Quick Assembly Steps
1. Get Everything Set
Lay all parts on the floor. Make sure the arrows on the rails point up.

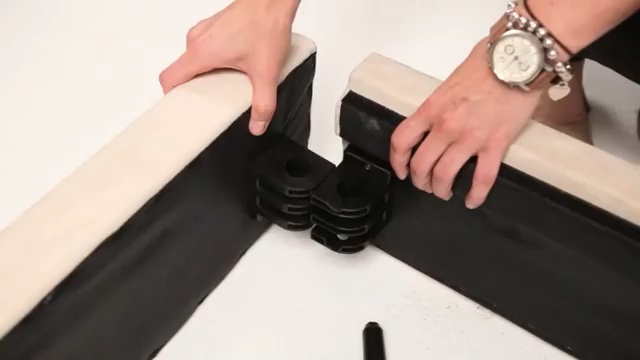

2. Connect the Frame
- Attach side rails to end rails at all four corners.
- Ensure edges are smooth and corners form cubes.

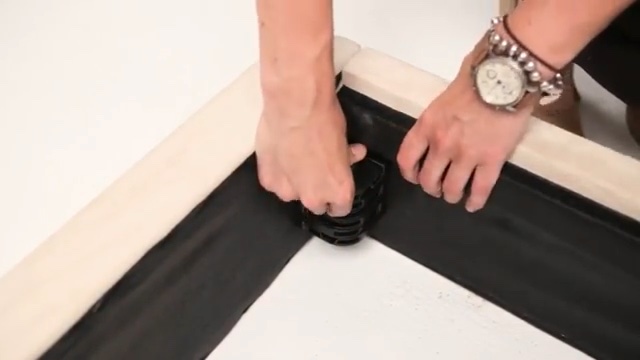

3. Insert Pins
Push a pin into each corner block. Align the nubs to the block grooves, then press down firmly.

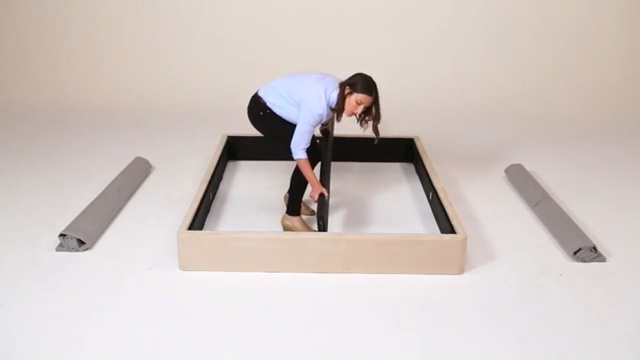

4. Add the Center Rail(s)
Slot the center rail(s) into the end rail connectors.

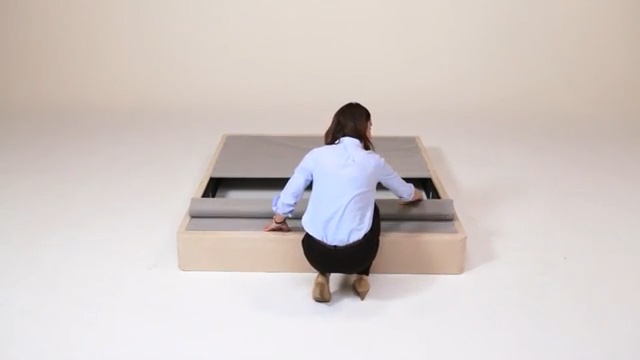

5. Lay the Slats
- Unfold slat packs over the frame. Align the Velcro strips with the end rails.
- Secure the Velcro all around.
That’s it! Your Leesa Foundation is ready.
Troubleshooting
The pins barely fit into the holes. What should I do?
The pins are tapered and should be inserted from the top down. Make sure all rails are correctly oriented with the arrows pointing up.
I can’t get the final pin into place. Is there a trick?
Remove a pin from the opposite corner, insert the problem pin, then reinsert the removed pin.
For your safety:
- Remove pins by pulling from the top or pushing gently with a hand over the pin to prevent it from flying.
- Follow local building codes. Ensure everyone working on assembly is safe and wears necessary safety gear.
If you're unsure about how to set up your new Leesa Foundation, please review the attached assembly guide. If you still need help, give us a call or send us a message!
